VW T5 2.0L TDI Ölkühler KIT 19 Reihen Umbau

19-Row High-Performance Oil Cooler Kit for VW T5 2.0L TDI – Without Thermostat

This high-quality oil cooler kit is specifically designed for enhanced VW T5 2.0L TDI engines. It significantly improves oil cooling under extreme thermal conditions, helping to increase engine durability and prevent overheating – ideal for performance-oriented vehicles and motorsport applications.

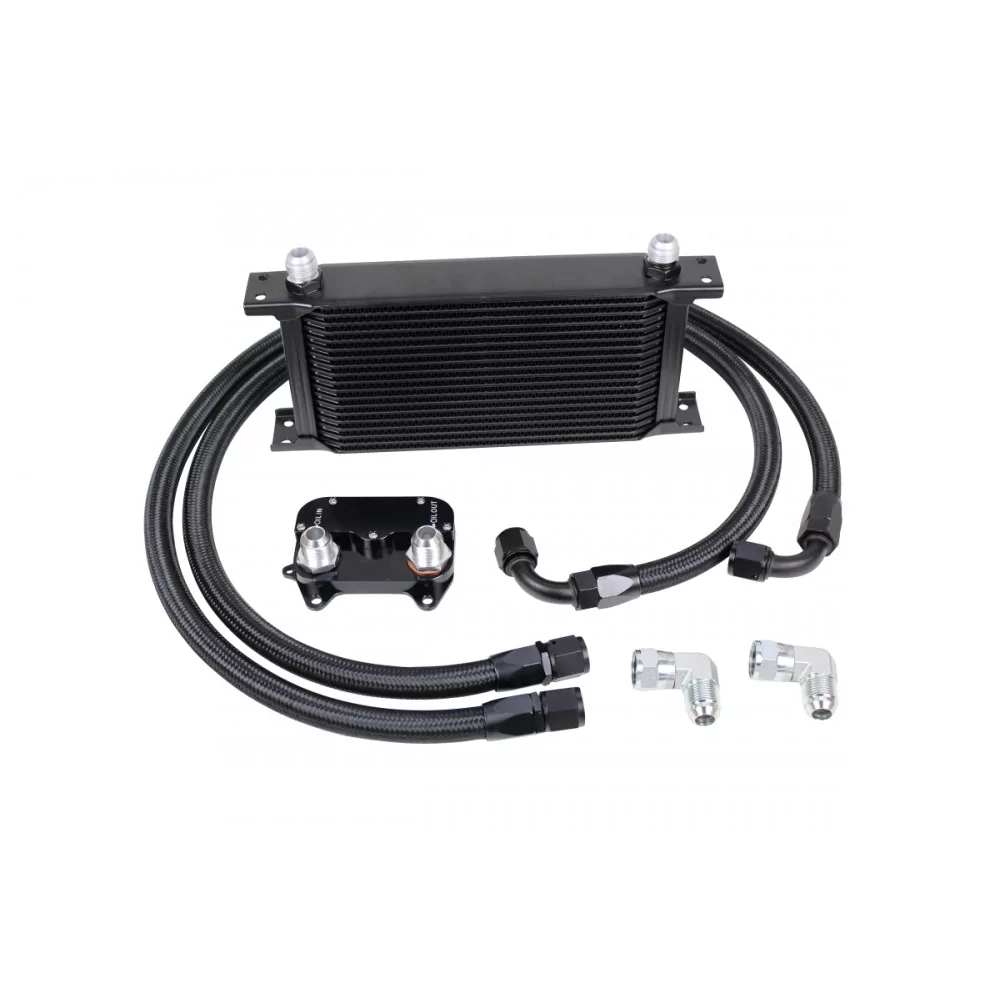

Kit Contents & Features:

• High-performance oil cooler with 19 cooling rows
• NBR nylon braided hoses (Dash 10) – heat- and pressure-resistant
• AN10 connection system including 2x 90° AN10 fittings
• Aluminum adapter plate – replaces OEM 03L117021C / 03L117021B

Technical Specifications:

• Operating pressure: up to 12 bar
• Pressure tested to: 37 bar
• Durability: 200,000 pressure cycles (0–10 bar, 2 Hz at 60 °C)
• Temperature range: -40 °C to +150 °C
• Max torque on fittings: 40 Nm
• Minimum bending radius of NBR hoses: 35 mm

Vehicle Compatibility:

Suitable for VW T5 2.0L TDI engines with the following engine codes:

• CAAA
• CAAB
• CAAD
• CAAE
• CAAC
• CCHB
• CCHA

Installation Notes:

• Installation by a qualified workshop is strongly recommended
• Mount the oil cooler using all 4 mounting tabs with rubber bushings to prevent vibration
• Minor trimming of the bumper support may be required for installation
• Oil capacity increases by approx. 0.3 – 0.7 liters depending on the setup
• Important: Not suitable for winter use below 0 °C – no thermostat included!

Note: This product is intended exclusively for motorsport use or for operation on closed courses. Not approved for use on public roads.
